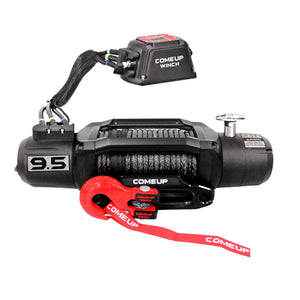

SOLO 9.5rs Trail Edition Winch
COMEUP SOLO 9.5rs Trail Edition Winch
With 9,500 lb, 12V, Synthetic Rope
The COMEUP SOLO 9.5rs Trail Edition is COMEUP’s newest winch design, replacing the previous discontinued SOLO 9.5. Built for overland and trail recovery, the 9.5rs delivers reliable 9,500 lb pulling power in a compact, modern package.
This winch is a direct plug-and-play solution for select Dissent Off-Road front winch bumpers on platforms including the GX550, LC250, 4Runner, and other compatible applications.
The Trail Edition is purpose-built for expedition travel and technical trail use, featuring the innovative BossHook-M and a specialized winch fuse kit for added protection and reliability.
Key Features
- 9,500 lb (4,309 kg) rated single-line pull
- 5.0 HP / 3,730W 12V series-wound motor
- Synthetic rope for reduced weight and safer recovery
- Wireless digital remote plus waterproof wired remote with thermometric LED indicator
- Automatic CBS (Cone Brake Structure) braking system (outside the drum)
- BossHook-M closed-system recovery hook
- Compact mounting footprint for common winch trays and bumpers
Specifications
| Rated Line Pull | 9,500 lb (4,309 kg) single line |
|---|---|
| Motor | 5.0 hp / 3,730 W, 12V series wound |
| Gear Train | 3-stage planetary |
| Gear Ratio | 159:1 |
| Clutch (Free Spool) | Rotating ring gear |
| Brake (Outside the Drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch Construction | Aluminum die-cast housing with steel drum |
| Drum Size | 2.5" × 9" (63.5 × 228 mm) |
| Control | Digital two-way wireless remote + waterproof wired remote w/ thermometric LED indicator |
| Rope Type | Synthetic rope |
| Rope Size | 3/8" × 76 ft (10 mm × 23.2 m) |

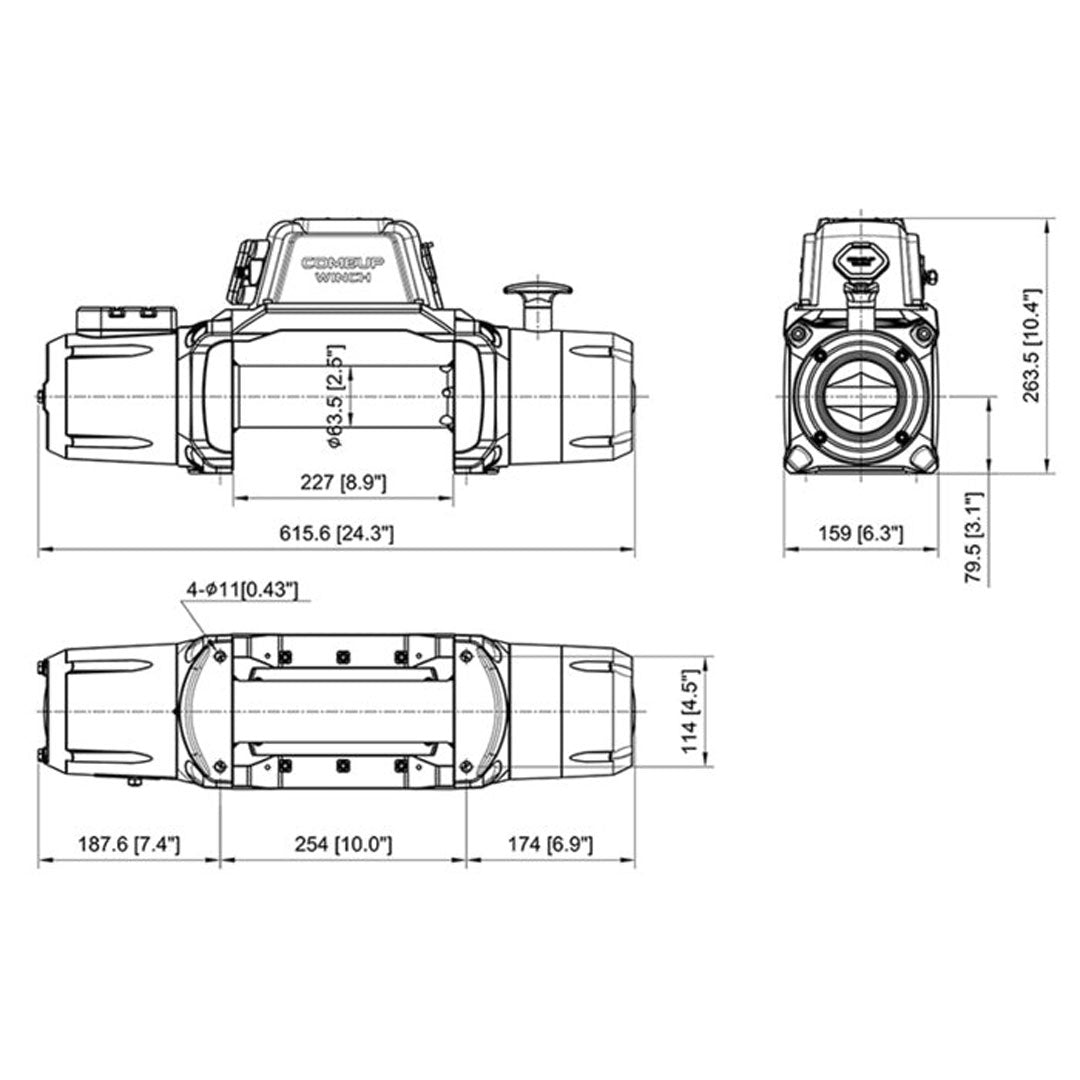

| Mounting Bolt Pattern | 10" × 4.5" (254 × 114 mm) |
| Winch Weight | 76.9 lb |
| Gross Weight | 91.5 lb |
| Dimensions | 26.9" × 8.2" × 16.9" (682 × 209 × 430 mm) |
Line Speed & Amp Draw (1st layer of rope on drum)
| Line Pull | Line Speed | Amp Draw (A) |
|---|---|---|
| No Load | 14.8 mpm / 48.6 fpm | 60 |
| 907 kg / 2,000 lb | 4.8 mpm / 15.7 fpm | 115 |
| 1,814 kg / 4,000 lb | 3.6 mpm / 11.8 fpm | 210 |
| 2,722 kg / 6,000 lb | 2.8 mpm / 9.2 fpm | 245 |
| 3,629 kg / 8,000 lb | 2.3 mpm / 7.6 fpm | 280 |
| 4,309 kg / 9,500 lb | 2.2 mpm / 7.2 fpm | 380 |
Line Pull & Rope Capacity
| Rope Layer | Pull by Layer | Total Rope on Drum |
|---|---|---|
| 1st | 4,309 kg / 9,500 lb | 5.1 m / 16.7 ft |
| 2nd | 3,472 kg / 7,655 lb | 11.7 m / 38.4 ft |
| 3rd | 2,908 kg / 6,410 lb | 19.7 m / 64.6 ft |
| 4th | 2,501 kg / 5,514 lb | 23.2 m / 76.0 ft |
