S8 LED Light Bar - 30 Inch - Baja Designs

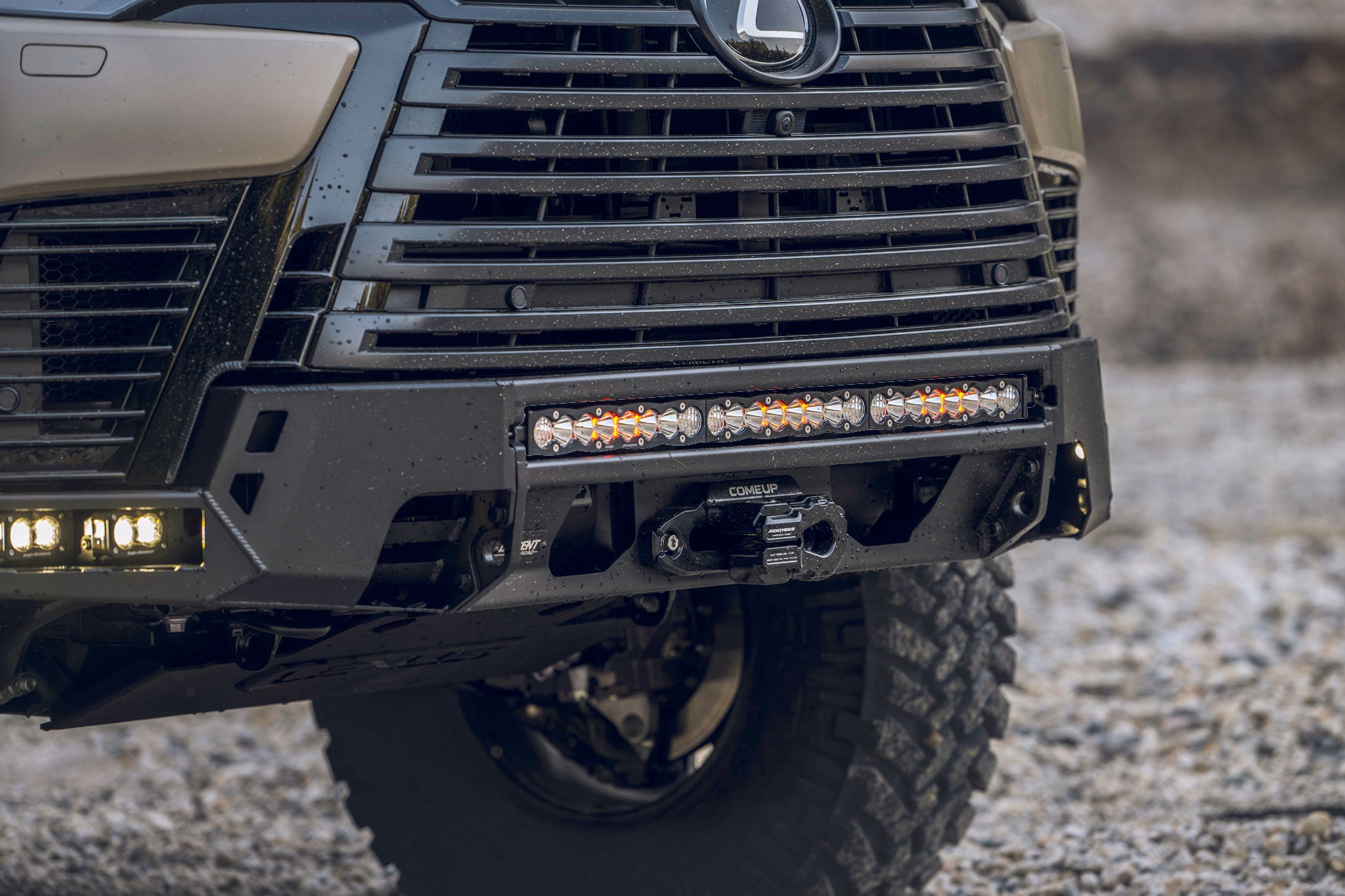

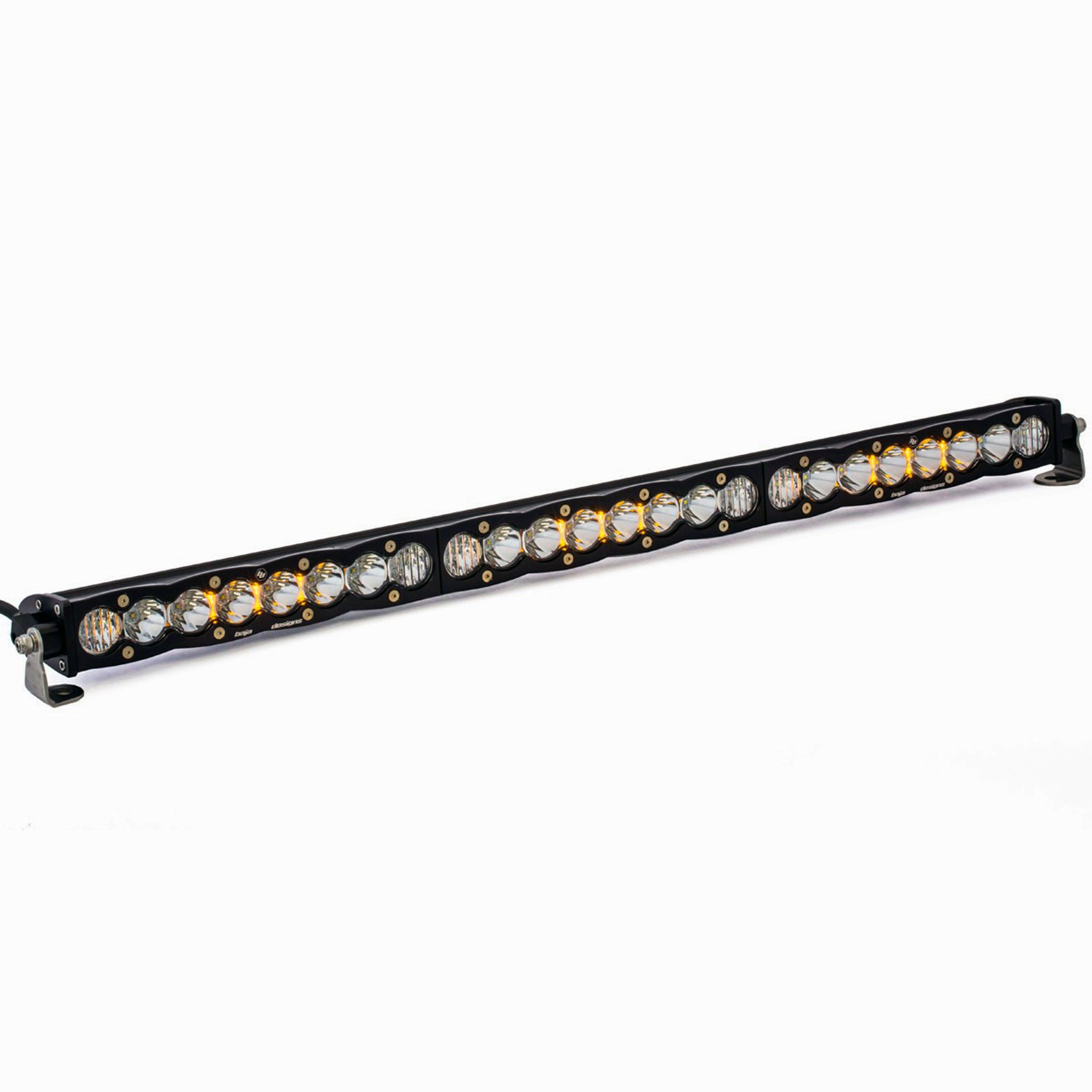

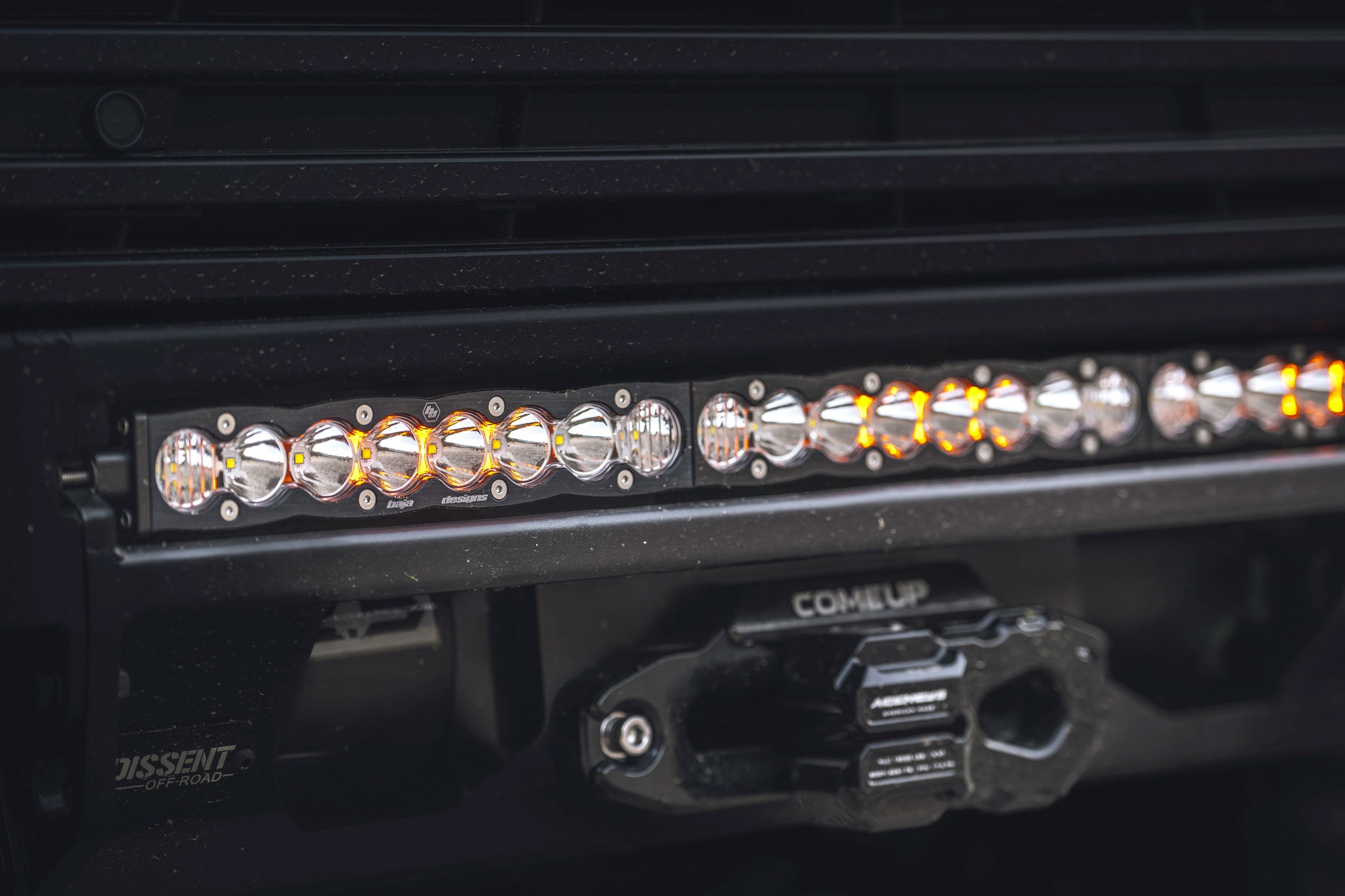

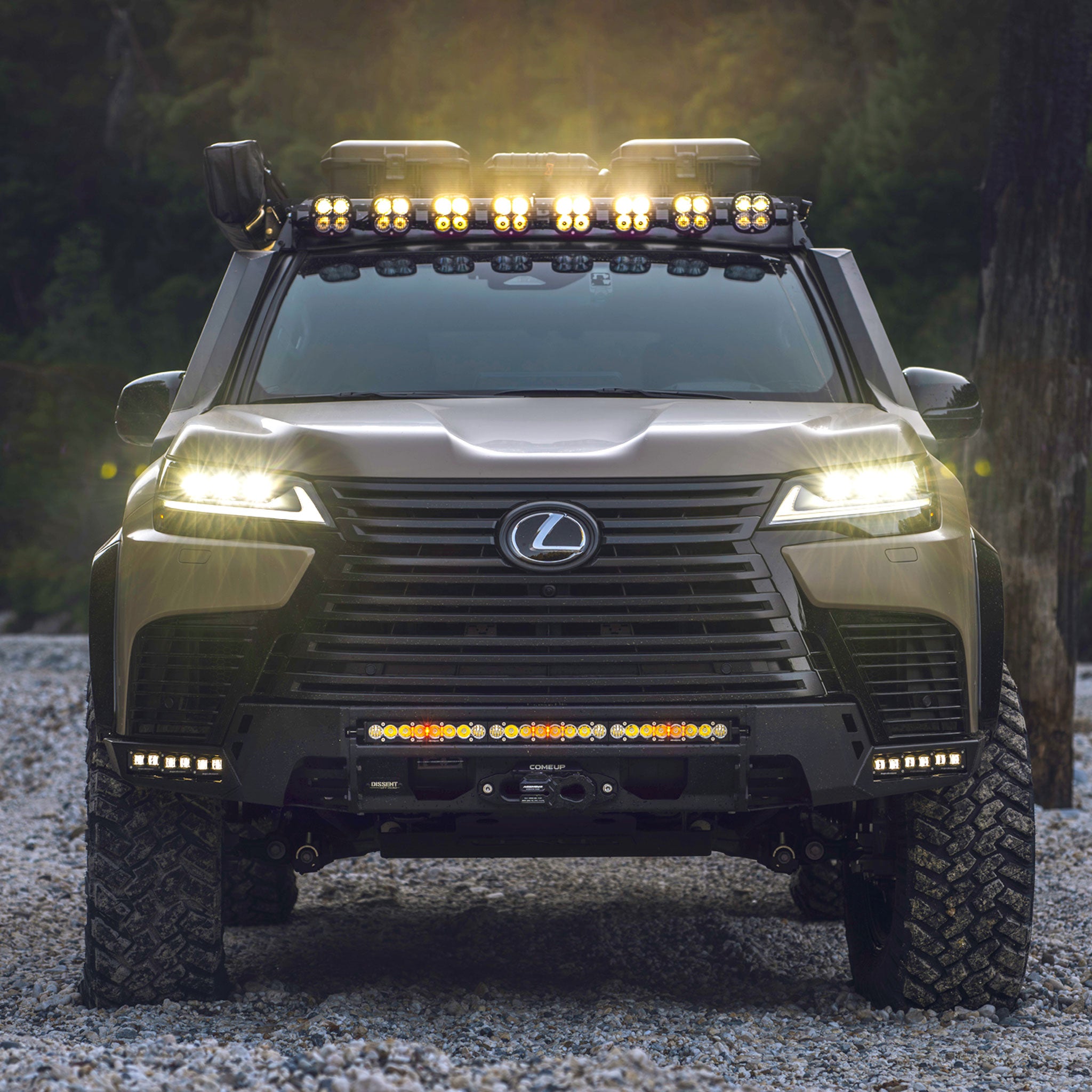

The S8 LED light bar from Baja Designs offers a slim and sleek bumper sized light bar that comes in a driving combo or spot spread lenses, and clear or amber options, The S8 configuration utilizing eight LEDs per 10-inch section, with this 30 Inch Bar it consists of 3 sections totaling at 13,560 lumens to illuminate zones 1, 2, and 3 in front of your vehicle. The S8 30 features high-performance reflectors. Both clear and amber options also come with an integrated amber backlight feature that can be turned on to show off your light bar. The S8 30 a light bar that shines with your vehicle.
The S8 LED light bar is backed by a 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection!
Note: This light does not include a harness. We recommend wiring the light to a SPOD or SwitchPro Controller.
ELS Scores: Effective Lighting Score(ELS) (The S8 30 uses 3x of these 10 inch sections)
S8 10 inch Driving Combo (Clear): ELS 116 degree / 7.1/ 323'/ 4910
S8 10 inch Spot (Clear): ELS 88 degree / 6.2/ 329'/ 4690
- Satisfaction Guarantee -30-Day Money Back Guarantee
- Limited Lifetime Warranty -Complete Purchase Protection

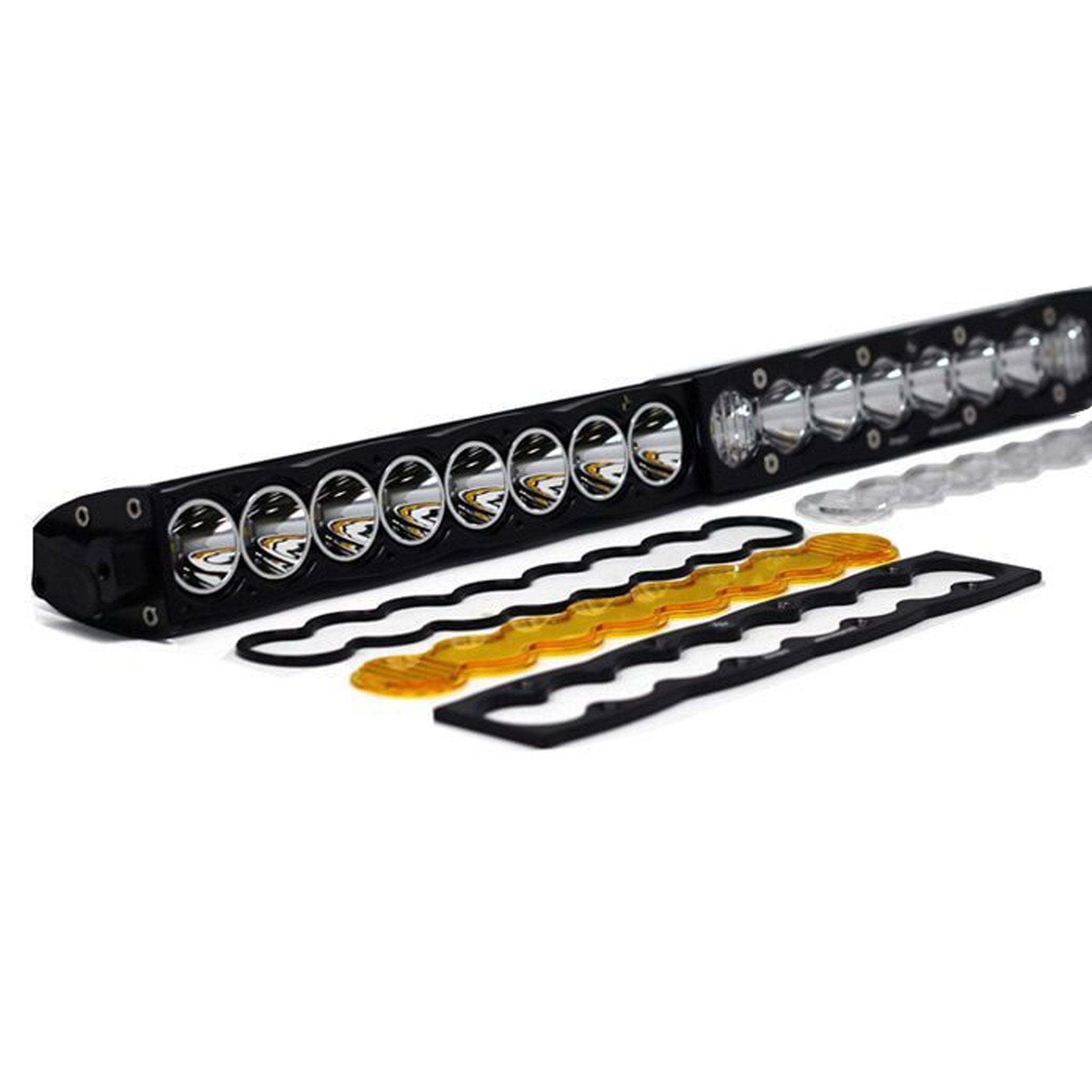

- uService -Replaceable Lenses And Optics
- ClearView -All The Light, Right Where You Need It
- MoistureBlock -Waterproof, Rain Proof, Submersible
- CopperDrive -Only LED Driven At 100 Percent
- 5000K Daylight -Less Driver Fatigue, Natural Color
| Specification | Details |
|---|---|

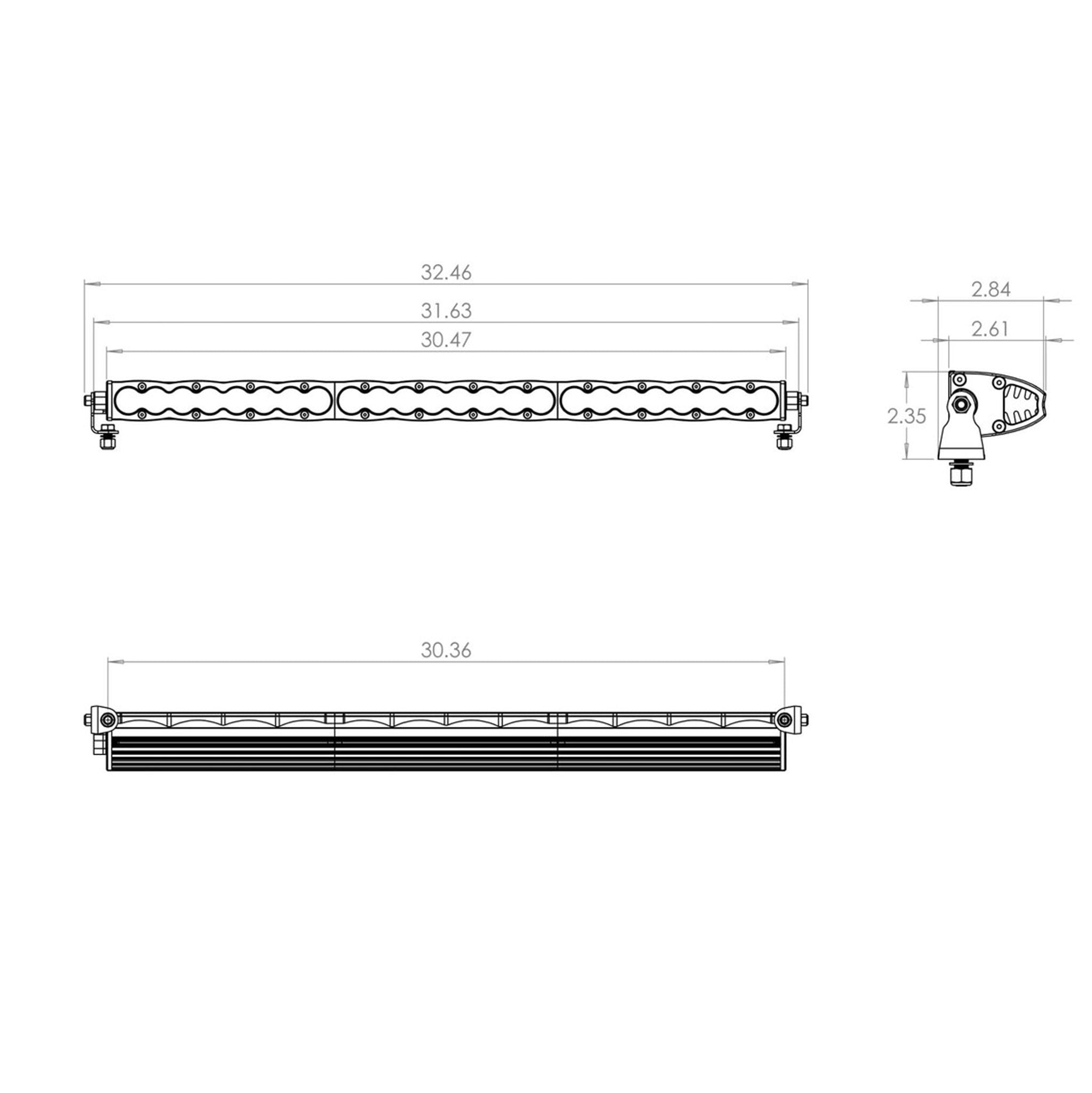

| Light Bar Width | 30" Inches |
| Wattage | 120W |
| Amperage Rating | 9.99A |
| Beam Pattern | Driving/Combo |
| Brightness | 13,560 Lumens |

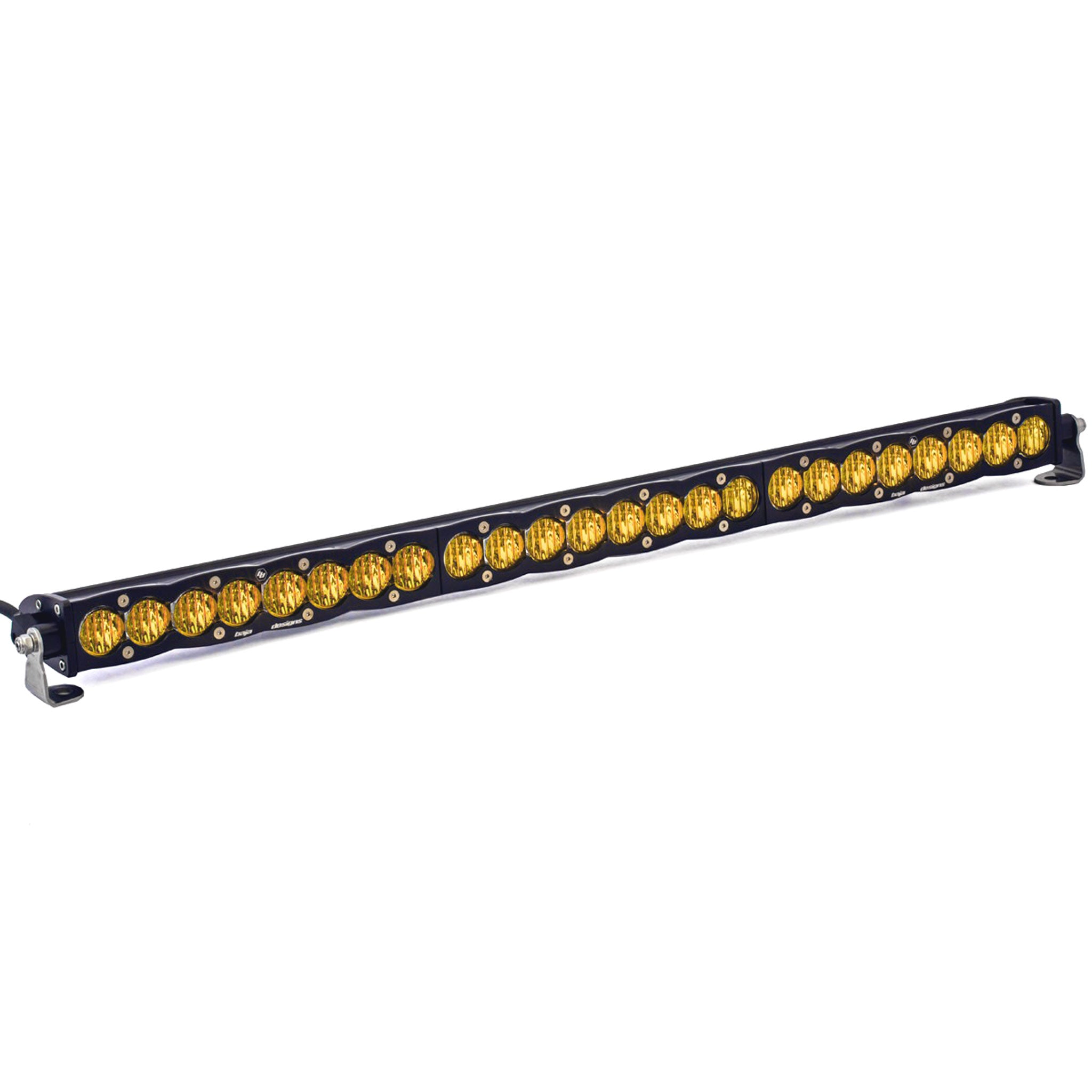

| Lens Options | Clear or Amber |
| Lens Material | Hardcoated Polycarbonate |
| Housing | Aircraft Grade Aluminum, Black, Hard Anodized |
| Bezel Material | Billet Machined Aluminum |
| Lighting Tech | Cree LED, 24 LEDs |
| Lighting Modes | Beam / Amber Backlit Feature |
| Mounting | Stainless Steel Brackets (Included) |
| Overvoltage Protection | Built-In |
| Wiring Harness | Not Included |
| Compliance | IP69K Waterproof, IK10 Impact, Exceeds MIL-STD810G |
