S8 LED Light Bar - 40 Inch - Baja Designs
The S8 LED light bar from Baja Designs offers a slim and sleek light bar that comes in a driving combo or spot spread lenses, and clear or amber options, The S8 configuration utilizing eight LEDs per 10-inch section, with this 40 Inch Bar it consists of 4 sections totaling at 25,400 lumens to illuminate zones 1, 2, and 3 in front of your vehicle. The S8 40 features high-performance reflectors. Both clear and amber options also come with an integrated amber backlight feature that can be turned on to show off your light bar. The S8 40 a light bar that shines with your vehicle.
The S8 LED light bar is backed by a 30-day Satisfaction Guarantee and Limited Lifetime Warranty giving you the ultimate in-purchase protection!
Note: This light does not include a harness. We recommend wiring the light to a SPOD or SwitchPro Controller.
ELS Scores: Effective Lighting Score(ELS) (The S8 40 uses 4x of these 10 inch sections)
S8 10 inch Driving Combo (Clear): ELS 116 degree / 7.1/ 323'/ 4910
S8 10 inch Spot (Clear): ELS 88 degree / 6.2/ 329'/ 4690
- Satisfaction Guarantee -30-Day Money Back Guarantee
- Limited Lifetime Warranty -Complete Purchase Protection
- uService -Replaceable Lenses And Optics
- ClearView -All The Light, Right Where You Need It
- MoistureBlock -Waterproof, Rain Proof, Submersible
- CopperDrive -Only LED Driven At 100 Percent
- 5000K Daylight -Less Driver Fatigue, Natural Color
Specifications:
| Amperage Rating (A) | 16.0a |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo, Clear |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 25,400 |
| Description | Driving/Combo Or Amber |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear Or Amber |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | Beam/Amber Backlit Feature |
| Lighting Quantity | 32 |
| Lighting Type | Cree LED |
| Lighting Technology | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S8 40 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 240w |
| Wiring Harness Included | No |

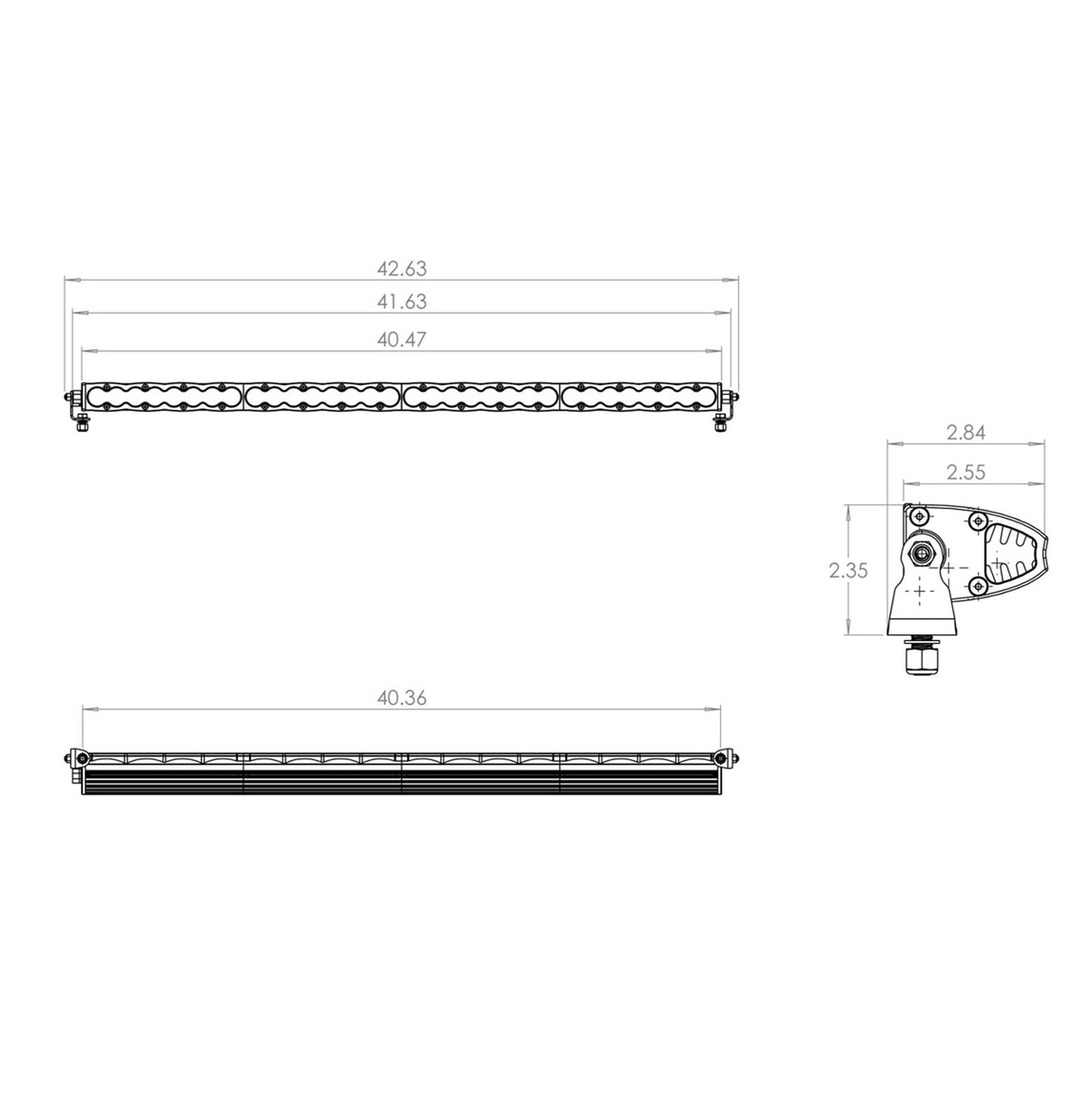

Dimensions:
| Depth (in.) | 3 |
| Height (in.) | 1.6 |
| Length (in.) | 40 |
| Weight (lbs.) | 8.65 |
