ComeUp Slim 12.5 RSI Trail Winch

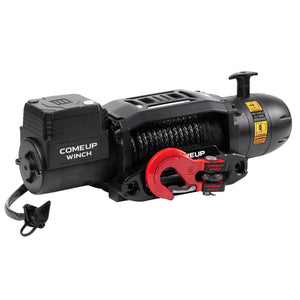

COMEUP Slim 12.5 RSI Trail Edition Winch – 12,500 lb, 12V, Integrated Control Box
The COMEUP Slim 12.5 RSI Trail Edition is a high-capacity, ultra-compact winch engineered for overland expedition and demanding trail recovery where space, integration, and clean installation are critical. By integrating the control box directly into the motor and winch assembly, the Slim 12.5 RSI delivers a powerful 12,500 lb rated line pull in a single, low-profile unit.
The result is a seamless installation with fewer external components, reduced wiring complexity, and improved reliability—ideal for modern vehicles with tight packaging constraints and integrated bumper systems.
Trail Edition features include the innovative BossHook-M and a dedicated fuse kit, delivering a new level of protection, capability, and confidence for serious off-road recovery.
Key Features
- 12,500 lb (5,670 kg) rated single-line pull

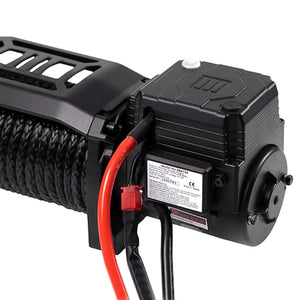

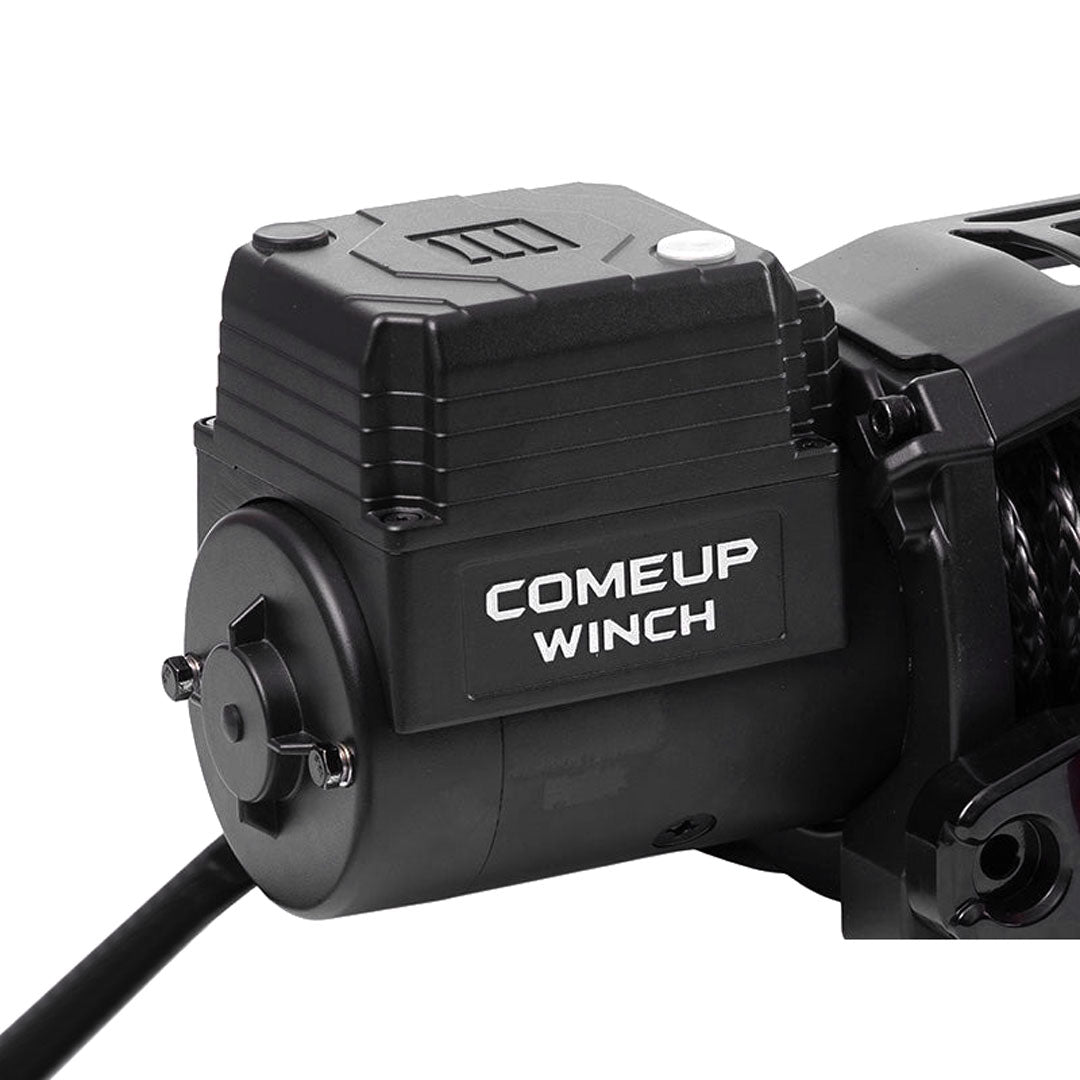

- Integrated control box and motor for a compact, all-in-one design
- 5.0 HP / 3,730W 12V series-wound motor
- Slim, low-profile footprint for tight bumper and winch tray applications
- Synthetic rope for reduced weight and safer recovery
- Wireless digital remote plus waterproof wired remote (17 ft / 5 m) with thermometric LED indicator
- Automatic CBS (Cone Brake Structure) braking system (outside the drum)
- BossHook-M closed-system recovery hook
Specifications
| Rated Line Pull | 12,500 lb (5,670 kg) single line |
|---|---|
| Motor | 5.0 hp / 3,730 W, 12V series wound |
| Gear Train | 3-stage planetary |
| Gear Ratio | 225:1 |
| Clutch (Free Spool) | Rotating ring gear |
| Brake (Outside the Drum) | Automatic, full load CBS (Cone Brake Structure) |
| Winch Construction | Aluminum die-cast housing with steel drum |
| Drum Size | 2.5" × 8.9" (63.5 × 227 mm) |
| Control | Built-in digital two-way wireless remote + waterproof wired remote (17 ft / 5 m) with thermometric LED indicator |
| Rope Type | Synthetic rope |
| Rope Size | 7/16" × 69 ft (11 mm × 21 m) |

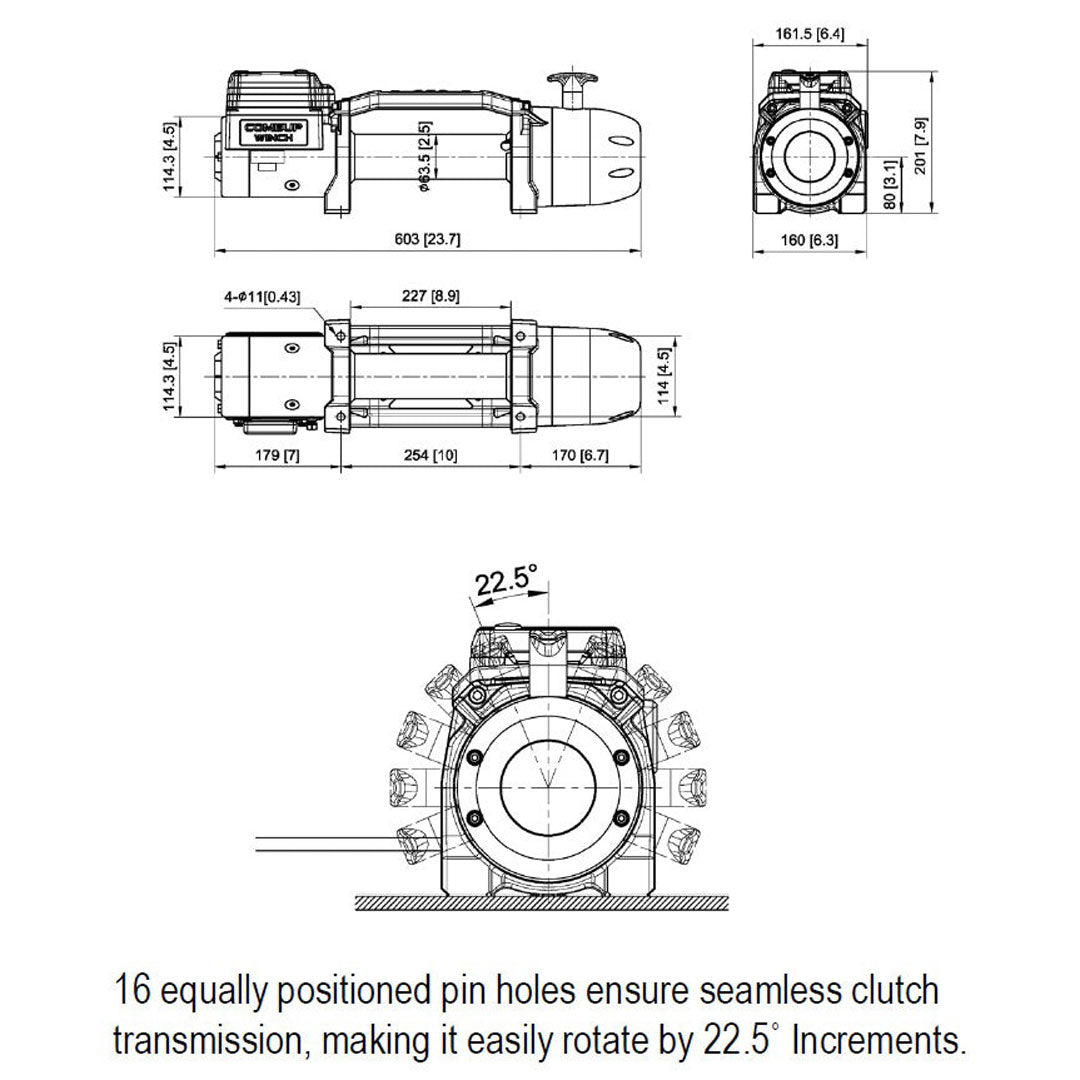

| Mounting Bolt Pattern | 10" × 4.5" (254 × 114 mm) |
| Winch Weight | 61.7 lb (28 kg) |
| Gross Weight | 89.1 lb (40.5 kg) |
| Warranty | Limited lifetime mechanical warranty; 3-year electrical warranty |
| Box Dimensions | 26.9" × 8.2" × 16.9" (682 × 209 × 430 mm) |
Line Speed & Amp Draw (1st layer of rope on drum)
| Line Pull | Line Speed | Amp Draw (A) |
|---|---|---|
| No Load | 7.7 mpm / 25.3 fpm | 60 |
| 907 kg / 2,000 lb | 3.4 mpm / 11.2 fpm | 115 |
| 1,814 kg / 4,000 lb | 2.5 mpm / 8.2 fpm | 160 |
| 2,722 kg / 6,000 lb | 2.0 mpm / 6.6 fpm | 220 |
| 3,629 kg / 8,000 lb | 1.7 mpm / 5.6 fpm | 275 |
| 5,670 kg / 12,500 lb | 0.9 mpm / 3.0 fpm | 380 |
Line Pull & Rope Capacity
| Rope Layer | Pull by Layer | Total Rope on Drum |
|---|---|---|
| 1st | 5,670 kg / 12,500 lb | 4.8 m / 15.7 ft |
| 2nd | 4,499 kg / 9,919 lb | 10.9 m / 35.7 ft |
| 3rd | 3,729 kg / 8,221 lb | 18.5 m / 60.7 ft |
| 4th | 3,184 kg / 7,020 lb | 21.0 m / 69.0 ft |
