Winch Wiring Kit
Materials
Weight
Winch Wiring Kit
- Land Cruiser 250
- Hybrid 4 Runner models *(minus bracket)
Due to the battery being in the back of the vehicle this makes wiring a winch more of a task than your standard installation.
This kit includes everything you need (brackets, cables, fuses) for an easy install to get any model winch or other high amp 12 volt products wired and ready to go for your LC250.
* If Ordering this kit for another vehicle, please include you make and model in the order notes area during check out.Ā
the bracket in this kit is designed for the LC250 only, but the wire lengths are suitable for other hybrid model 4 runners, and a few other select models were the battery is located in the rear of the vehicle, you will have to mount the terminal posts and other items. and might require fabricating another mount.Ā
Please Watch this video before installing.
LC250 Winch Wiring Kit InstallĀ (YouTube)

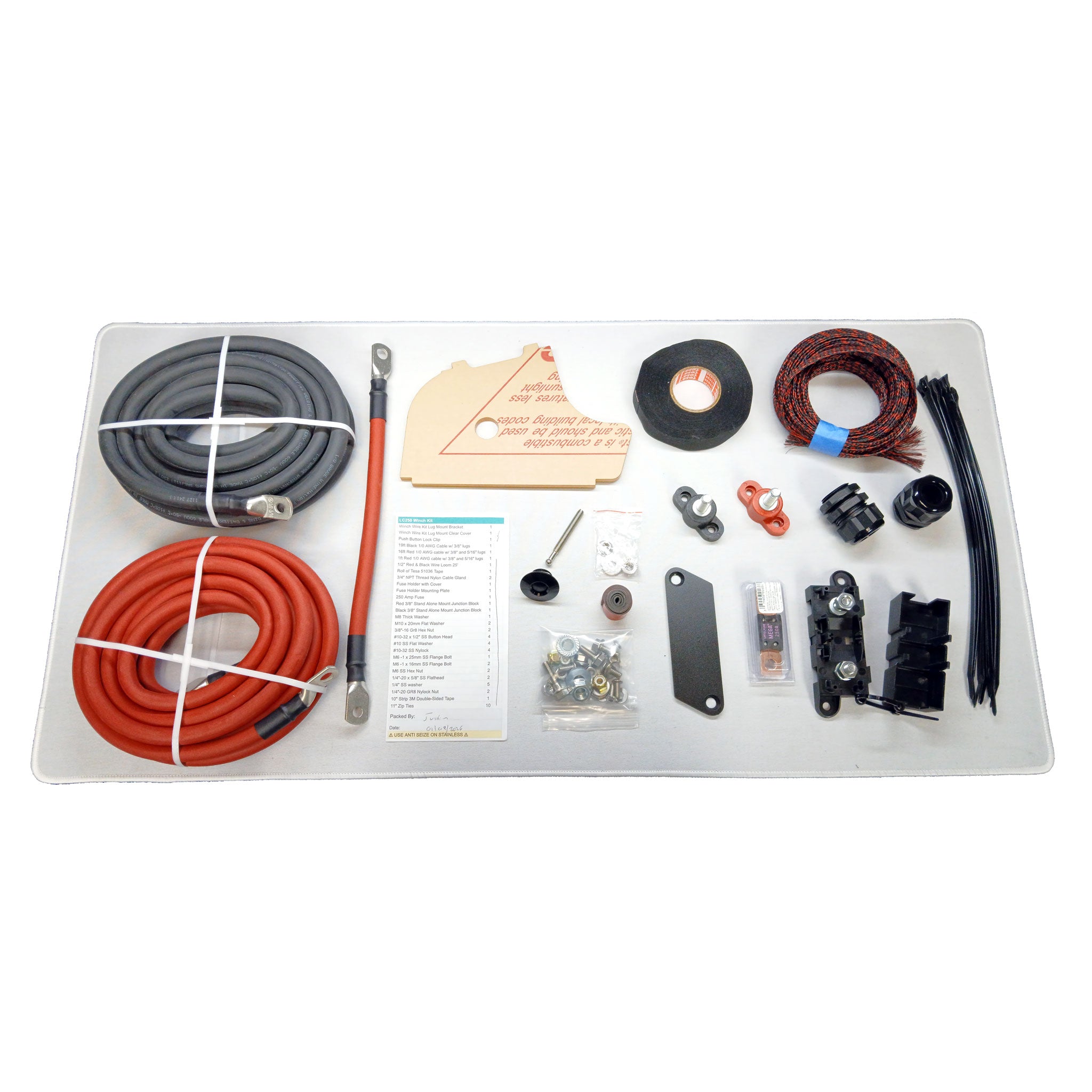

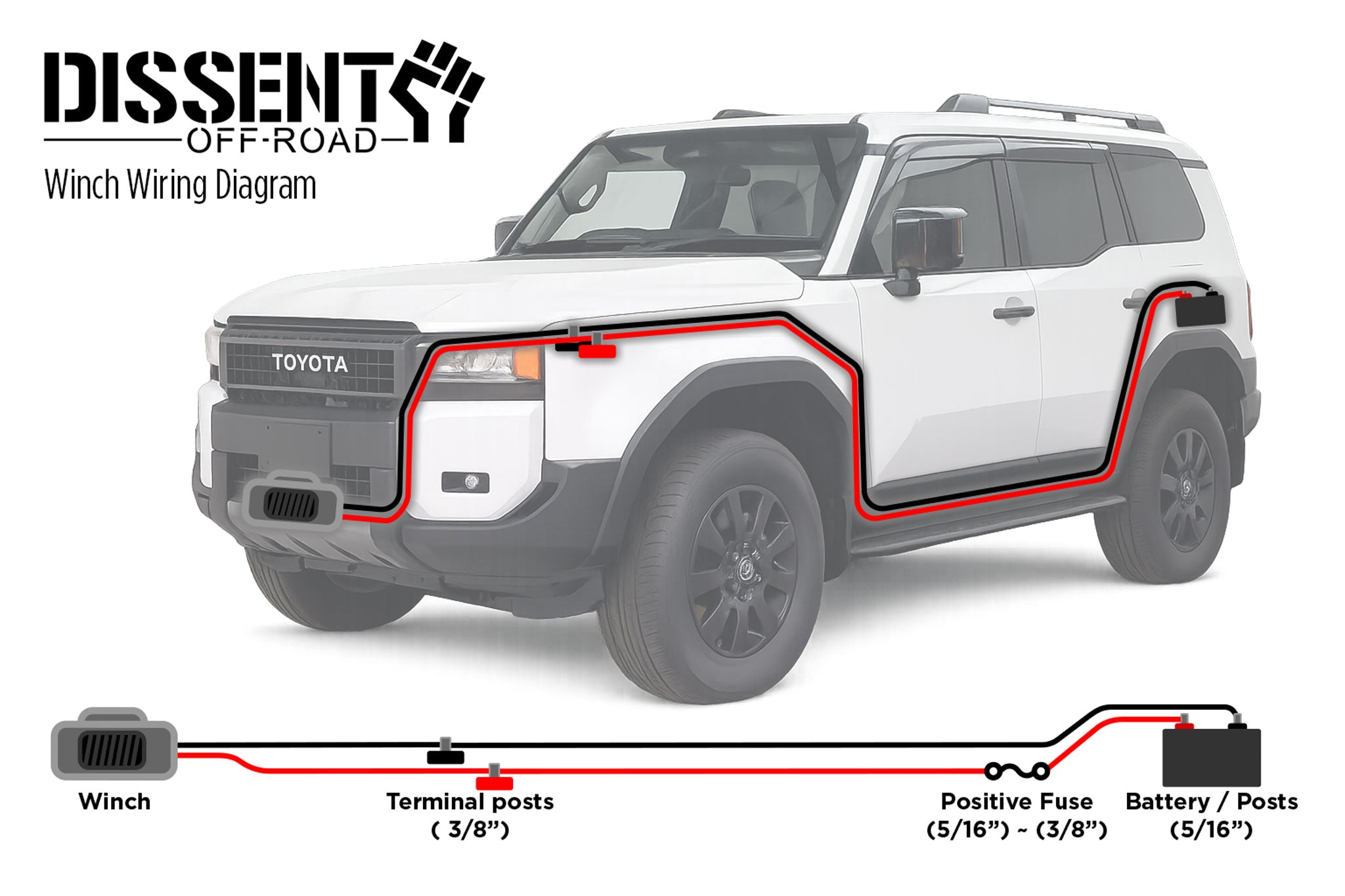

Kit Includes:Ā
| Ā Winch Wire Kit Lug Mount Bracket | 1 |
| Ā Winch Wire Kit Lug Mount Clear Cover | 1 |
| Ā Push Button Lock Clip | 1 |
| Ā Black 1/0 AWG Cable w/ 3/8" lugs | 1 |
| Ā Red 1/0 AWG cable w/ 3/8" and 5/16" lugs | 1 |
| Ā 1ft Red 1/0 AWG cable w/ 3/8" and 5/16" lugs | 1 |
| Ā 1/2" Red & Black Wire Loom 25' | 1 |
| Ā Roll of Tesa 51036 Tape | 1 |
| Ā 3/4" NPT Thread Nylon Cable Gland | 2 |
| Ā Fuse Holder with Cover | 1 |
| Ā Fuse Holder Mounting Plate | 1 |
| Ā 250 Amp Fuse | 1 |
| Ā Red 3/8" Stand Alone Mount Junction Block | 1 |
| Ā Black 3/8" Stand Alone Mount Junction Block | 1 |
| Ā M8 Thick Washer | 1 |
| Ā M10 x 20mm Flat Washer | 2 |
| Ā 3/8"-16 Gr8 Hex Nut | 2 |
| Ā #10-32 x 1/2" SS Button Head | 4 |
| Ā #10 SS Flat Washer | 4 |
| Ā #10-32 SS Nylock | 4 |
| Ā M6 -1 x 25mm SS Flange Bolt | 1 |
| Ā M6 -1 x 16mm SS Flange Bolt | 2 |
| Ā M6 SS Hex Nut | 2 |
| Ā 1/4"-20 x 5/8" SS Flathead | 2 |
| Ā 1/4" SS washer | 5 |
| Ā 1/4"-20 GR8 Nylock Nut | 2 |
| Ā 10" Strip 3M Double-Sided Tape | 1 |
| Ā 11" Zip Ties | 10 |
